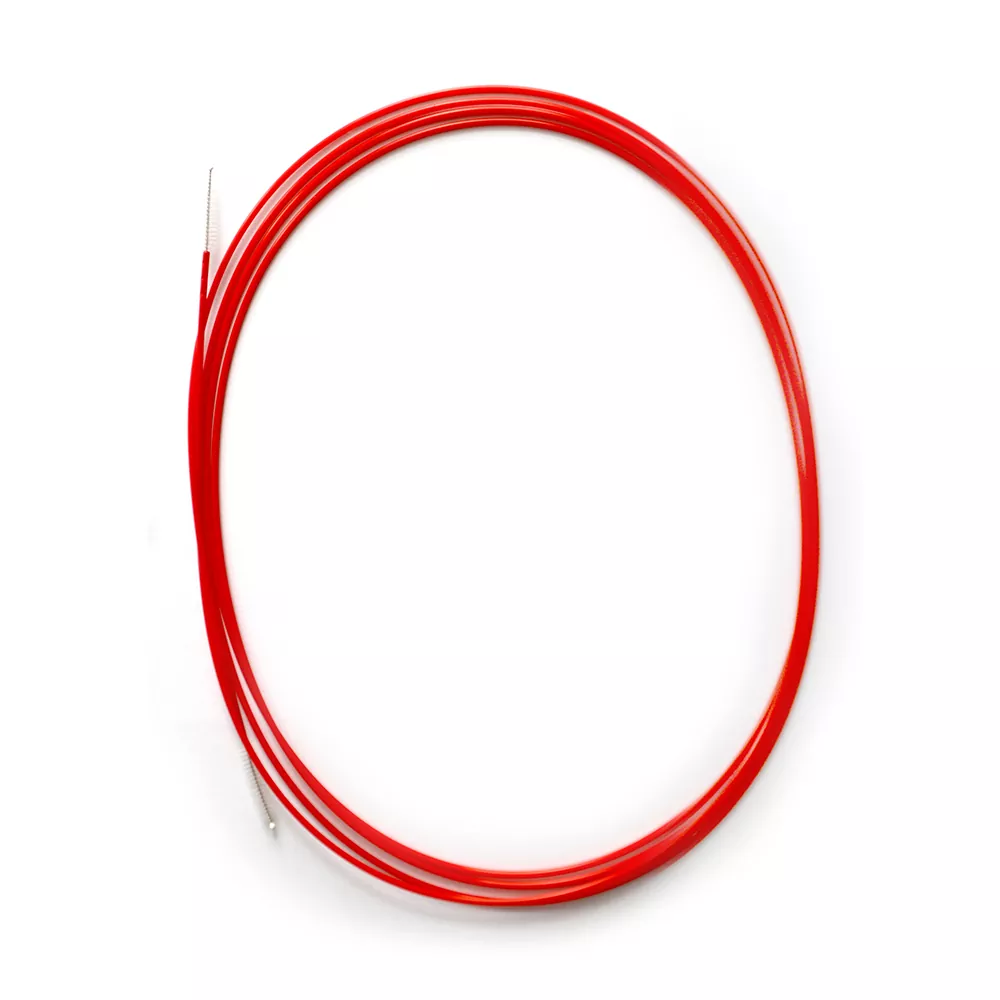

LucentMed is a reputable medical enterprise and a direct supplier of Endoscope Cleaning Brush for Electronic Components. These brushes are capable of reaching deep into narrow channels as fine as 0.5 mm; their 360° spiral structure ensures a tight fit against the inner walls, achieving a cleaning efficiency of 99%.
The brush shaft features an embedded stainless steel reinforcing wire, providing exceptional resistance to bending and ensuring that the brush retains its shape even after repeated use. Compatible with electronic endoscopes from leading brands such as Olympus and Fujifilm, this product is available in both disposable and reusable customizable options.
|
Parameter Category |
Specific Values/Specifications |
Technical Advantages |
|
Bristle Material |
Medical-grade PBT (Polybutylene Terephthalate) |
Highly elastic, wear-resistant, non-shedding, and resistant to chemical corrosion. |
|
Bristle Diameter |
0.08 mm – 0.15 mm (Optional) |
Precisely fits narrow lumens ranging from 0.5 mm to 2.8 mm, achieving a cleaning efficiency of 99%. |
|
Brush Head Length |
10 mm – 30 mm (Customizable) |
Accommodates various endoscope channel lengths, ensuring the brush head is visible at both ends. |
|
Shaft Material |
Stainless Steel Reinforcement Wire + Medical-grade POM Handle |
Highly resistant to bending; retains its shape after repeated use and offers a comfortable tactile feel during operation. |
|
Compatible Endoscopes |
Compatible with mainstream electronic endoscopes (Olympus, Fujifilm, Pentax, etc.) |
Precisely matches narrow internal channels, such as biopsy ports and suction lumens. |
|
Usage Method |
Single-use / Reusable |
Disposable models eliminate the risk of cross-infection, while reusable models can be recycled after sterilization. |
|
Sterilization Compatibility |
Resistant to High-Temperature/High-Pressure Autoclaving and Hydrogen Peroxide Plasma Sterilization |
Reusable models carry no risk of residual contamination following rigorous sterilization. |
|
Packaging Specifications |
Individually Sterilized Packaging (Single-use) / Single-Unit Packaging (Reusable) |
Disposable models are ready for immediate use upon opening, while reusable models facilitate centralized management and sterilization. |
The internal channels of electronic endoscopes are narrow and tortuous; standard brushes simply cannot provide a precise fit.
LucentMed's specialized precision cleaning brush features a brush head—including its diameter, length, and bristle material—that has been meticulously engineered. This design ensures the effective removal of bloodstains, tissue residues, and biofilms without causing damage to the delicate internal channels, thereby mitigating the risk of cross-infection resulting from inadequate cleaning.
Utilizing ultra-fine bristles to penetrate even the smallest apertures, this product delivers powerful cleaning performance without harming internal components. Furthermore, it is non-shedding, solvent-resistant, and anti-static.
We offer a wide range of specifications to meet the rigorous deep-cleaning requirements of the electronics manufacturing, assembly, and maintenance sectors.
When selecting an endoscope cleaning brush, the key lies in ensuring three specific matches:
1. The diameter of the brush head must match the inner diameter of the channel; if it is too large, it risks damaging the channel wall, while if it is too small, it will lack sufficient cleaning power.
2. The length of the brush shaft must exceed the length of the channel to ensure that, during scrubbing, the brush head is visible at both ends.
3. The brush must be compatible with the specific brand and model of the endoscope; please refer to the endoscope's instruction manual for verification.
LucentMed products are compatible with most major endoscope brands currently available on the market. Our Endoscope Cleaning Brush for Electronic Components is specifically designed for cleaning the inner diameters of precision electronic parts, making it ideal for cleaning tiny apertures found in PCBs, connectors, sensors, chip sockets, and similar components.
This product is capable of reaching deep into blind holes, deep bores, and crevices to efficiently remove dust, solder residue, oil stains, and metal debris—all without damaging surface plating or scratching delicate inner walls.
Featuring a tightly twisted wire core that prevents bristle shedding, the brush is resistant to acids and alkalis, possesses anti-static properties, and is suitable for both manual and automated cleaning processes. A comprehensive range of specifications is available, with customization options provided upon request.
A: Single-use cleaning brushes come in individually sterilized packaging; they are ready to use immediately upon opening and are discarded after a single use, thereby completely eliminating the risk of cross-contamination.
Reusable cleaning brushes feature a stainless steel shaft and require high-level disinfection or sterilization after each use. While they offer lower costs, they necessitate the establishment of strict disinfection monitoring protocols to ensure the brush itself remains free of contaminants.
A: Forcefully pushing the brush shaft is strictly prohibited; avoid forceful insertion to prevent scratching the internal channels or causing the brush bristles to detach.
During scrubbing, use a multi-enzymatic cleaning solution and rinse repeatedly under running water until no visible contaminants remain.
If a reusable model is selected, it must be allowed to air-dry before storage to prevent bacterial growth in humid environments.
A: Efficacy can be assessed through protein detection tests or Adenosine Triphosphate (ATP) detection tests.
Following proper scrubbing procedures, organic residue within the internal channels should be significantly reduced, and—after rinsing the brush head under running water—no visible residue should be detectable to the naked eye.
